2" HEIGHT SILLS & BANDING
SL01 LENGTH | Standard 60" Maximum 96"
SL46 LENGTH | Standard 58-3/4" Maximum 78"
![2 SL01 Dwg.png](https://static.wixstatic.com/media/2fd72f_e53dad0b5e33443db6a493390544eec3~mv2.png/v1/fill/w_380,h_128,al_c,q_85,enc_auto/2%20SL01%20Dwg.png)
![2 SL46 Dwg.png](https://static.wixstatic.com/media/2fd72f_0bc11db1da89422cad92db02abeedf5f~mv2.png/v1/fill/w_410,h_110,al_c,q_85,enc_auto/2%20SL46%20Dwg.png)
SL02 LENGTH | Standard 60" Maximum 96"
![2 SL02 Dwg.png](https://static.wixstatic.com/media/2fd72f_04041471c0de4320858398398930e622~mv2.png/v1/fill/w_380,h_128,al_c,q_85,enc_auto/2%20SL02%20Dwg.png)
SB01 LENGTH | Standard 48" Maximum 78"
![2 SB01 Dwg.png](https://static.wixstatic.com/media/2fd72f_b3f0233374534c6fb670b80d0510eec3~mv2.png/v1/fill/w_411,h_130,al_c,q_85,enc_auto/2%20SB01%20Dwg.png)
![S&B Photo 1.png](https://static.wixstatic.com/media/2fd72f_ec4d6dc4fdad4ed889c77f8e59575ac4~mv2.png/v1/crop/x_0,y_218,w_691,h_348/fill/w_675,h_340,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/S%26B%20Photo%201.png)
Specifications | Measurements are in inches.
Sills and banding come standard with a drip cut. Custom lengths are available up to maximum length.
​
Colour & Finish | Standard grey smooth precast unless premium colour or alternate finish are specified when ordering.
STEPS | GETTING STARTED | PRECAST STONE | TRADITIONAL | STACKING | PORCHES | RAILINGS | COLOURS & FINISHES
![](https://static.wixstatic.com/media/482ec0_b600a3f701ce4d18928e500ca7b370ec~mv2.jpg/v1/fill/w_385,h_289,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/482ec0_b600a3f701ce4d18928e500ca7b370ec~mv2.jpg)
![](https://static.wixstatic.com/media/482ec0_ad0fae1b9a384223a2b095e4df295b00~mv2.jpg/v1/fill/w_385,h_289,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/482ec0_ad0fae1b9a384223a2b095e4df295b00~mv2.jpg)
![](https://static.wixstatic.com/media/482ec0_8f03fffce5a1466d86e428c9487071fd~mv2.jpeg/v1/fill/w_385,h_514,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/482ec0_8f03fffce5a1466d86e428c9487071fd~mv2.jpeg)
![](https://static.wixstatic.com/media/482ec0_401ccd5748824d26b36b3de66ab8b29b~mv2.jpeg/v1/fill/w_96,h_128,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/482ec0_401ccd5748824d26b36b3de66ab8b29b~mv2.jpeg)

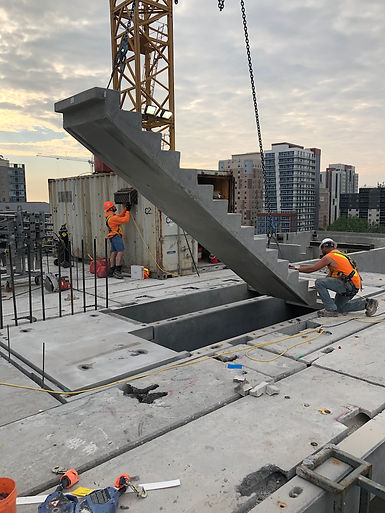

APARTMENT STAIRS
Since stairs are cast at our facility using existing molds, they are very economical and our quality is always consistent. Precast stairs have a smooth form finish are cast with integrated non-slip tread. The smooth finish left by our steel forms provides a superior feel and aesthetic over any trowel finish.
​
Our skilled team of drafters and engineers will provide engineered shop drawings at your request.
Concrete steps are delivered to the job-site when they are needed and are ready to install on arrival, eliminating the need to build temporary steps.
Quality Standards:
-
Manufactured in a CPCQA Certified to CSA A23.4
-
Stringent Quality Control Program ensures uniform finish and colour
-
Minimum 41 MPA (6000 psi) Reinforced Concrete
-
Load rated lifting inserts
-
Two-hour fire rating standard on all units
![](https://static.wixstatic.com/media/2fd72f_06ca06225f594e16b897eaf1739458f8~mv2.jpg/v1/fill/w_100,h_100,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/2fd72f_06ca06225f594e16b897eaf1739458f8~mv2.jpg)
Measurements in inches.
WIDTH | 3' to 8' RISE | up to 20 risers
FINISHES | Available in standard finish only.
Non-slip integrated abrasive strips optional
![Specs-ApartmentStairs.png](https://static.wixstatic.com/media/482ec0_e3c80198d5e846c79471b8d9fe87d2e1~mv2.png/v1/crop/x_0,y_10,w_1112,h_747/fill/w_552,h_371,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/Specs-ApartmentStairs.png)
CONNECTIONS
![](https://static.wixstatic.com/media/482ec0_4f1dc79d815d45f88f045011ce73e651~mv2.png/v1/fill/w_70,h_62,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/482ec0_4f1dc79d815d45f88f045011ce73e651~mv2.png)
BOTTOM
![](https://static.wixstatic.com/media/482ec0_455a19a20f6d478c86f0a982a9bb41c2~mv2.png/v1/crop/x_14,y_11,w_422,h_331/fill/w_75,h_59,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/482ec0_455a19a20f6d478c86f0a982a9bb41c2~mv2.png)
BOTTOM
![](https://static.wixstatic.com/media/482ec0_9a5ca86a2c66494b8089aa1bdf694eca~mv2.png/v1/crop/x_42,y_0,w_373,h_351/fill/w_65,h_61,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/482ec0_9a5ca86a2c66494b8089aa1bdf694eca~mv2.png)
TOP
STAIR STYLES
![Full FlightRENDER.png](https://static.wixstatic.com/media/482ec0_3a4ffd55f7f34675a14a3ab60d6e9e98~mv2.png/v1/crop/x_456,y_231,w_1449,h_1567/fill/w_68,h_73,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Full%20FlightRENDER.png)
FULL FLIGHT
![Half FlightRENDER.png](https://static.wixstatic.com/media/482ec0_7d2f4206a58443d3a3301ff190dbd58a~mv2.png/v1/crop/x_281,y_0,w_2184,h_2184/fill/w_73,h_73,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Half%20FlightRENDER.png)
HALF FLIGHT
![Half ZRENDER.png](https://static.wixstatic.com/media/482ec0_d411e44d077c48d99a5aa00c0ccae257~mv2.png/v1/crop/x_161,y_0,w_1283,h_1283/fill/w_73,h_73,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Half%20ZRENDER.png)
